SM-301 MP

  • Contemporary, sturdy mechanical design with a hermetically sealed refrigeration unit and air-cooled condenser.
  • High overrun beater shafts with polymer scrapper designed for maximum efficiency and easy extraction.
  • The ideal design of piston pump results in an effective mix and air feed at optimum overrun.
  • Direct expansion system to the freezing cylinders for fast and effective cooling.
  • Separate hopper refrigeration system in the mix storage tanks to store ice cream mixes at hygienically ideal temperature.
  • Electronic consistency controller monitors the hardness of ice cream constantly
  • To maintain a perfect hygienic condition, all parts in direct contact with ice cream or the mix are made of stainless steel and food grade plastic
  • Night storage mode for storage of mix in the hopper over-night..
Model Dimension (mm) Hourly Output (125 ml) Storage Capacity (Ltrs. x No.) Flavours Over Run Power (Ph/v/Hz Weight (Kg)
W D F
SM-301/MP 550 710 1400 350 8 x 2 Two + Mix 80% 1/230/50 270
Sr. No Technical Details Floor Model with Two Compressor
1 Size W550 x D700 x H1400
2 Capacity of mix storage tanks 9 x 2 ltrs
3 No of flavours Two + Mix
4 No of castor wheels 4 (100X30mm)
5 Number of lids over tank Two
6 Outer shell material Stainless steel matt hair line finish
7 Inner shell material Mild steel
8 Compressor Make Emerson / Tecumseh
9 No of Compressor One + One for hopper tanks
10 Refirgerent R404/ R134A
11 Condensor type Air cooled with Internal Grooved tubes
12 Details of separate refrigeration system for hopper Separate referigeration for Hopper Tanks refrigerent R134A
13 Temp of stored mix in hopper 4 Degree C and adjustable with separate thermostat. Standby mode available
14 Details on beater with scrapper Crafted from SS and scrapper blades from nylon, delrin or polycarbonate
15 Material of cylinder stainless steel 304 grade
16 Dia of cylinder 87mm
17 No of cylinder 2
18 Mix Hopper Agitator Optional at additional cost
19 Hourly output of cone at 125ml 300 cups or more
20 Controller programmeble microprocessor based consistency with Lcd display
21 Weight of machine 250 kg
22 Details on electric  power 415 V 50Hz Three Phase
  230 V 50Hz Single Phase
23 Beater motors 0.5 hp two nos direct gear drive
24 Motor make Godrej or Crompton/ GE
25 Installed Power 3000 W
26 Over run 80 % adjustable
27 Touch screen Control with LCD panel Available option is feather touch with LCD display. Touch screen can be incorporated at additional cost
28 Mix Indicator lights with alarm Optional at additional cost

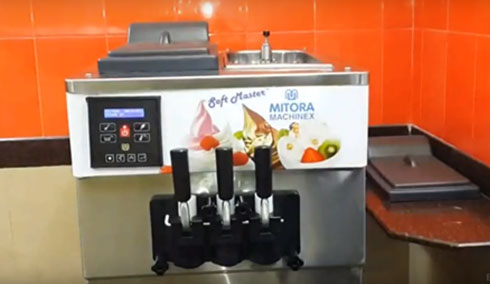

mitora Product video
